SESResultsViewer

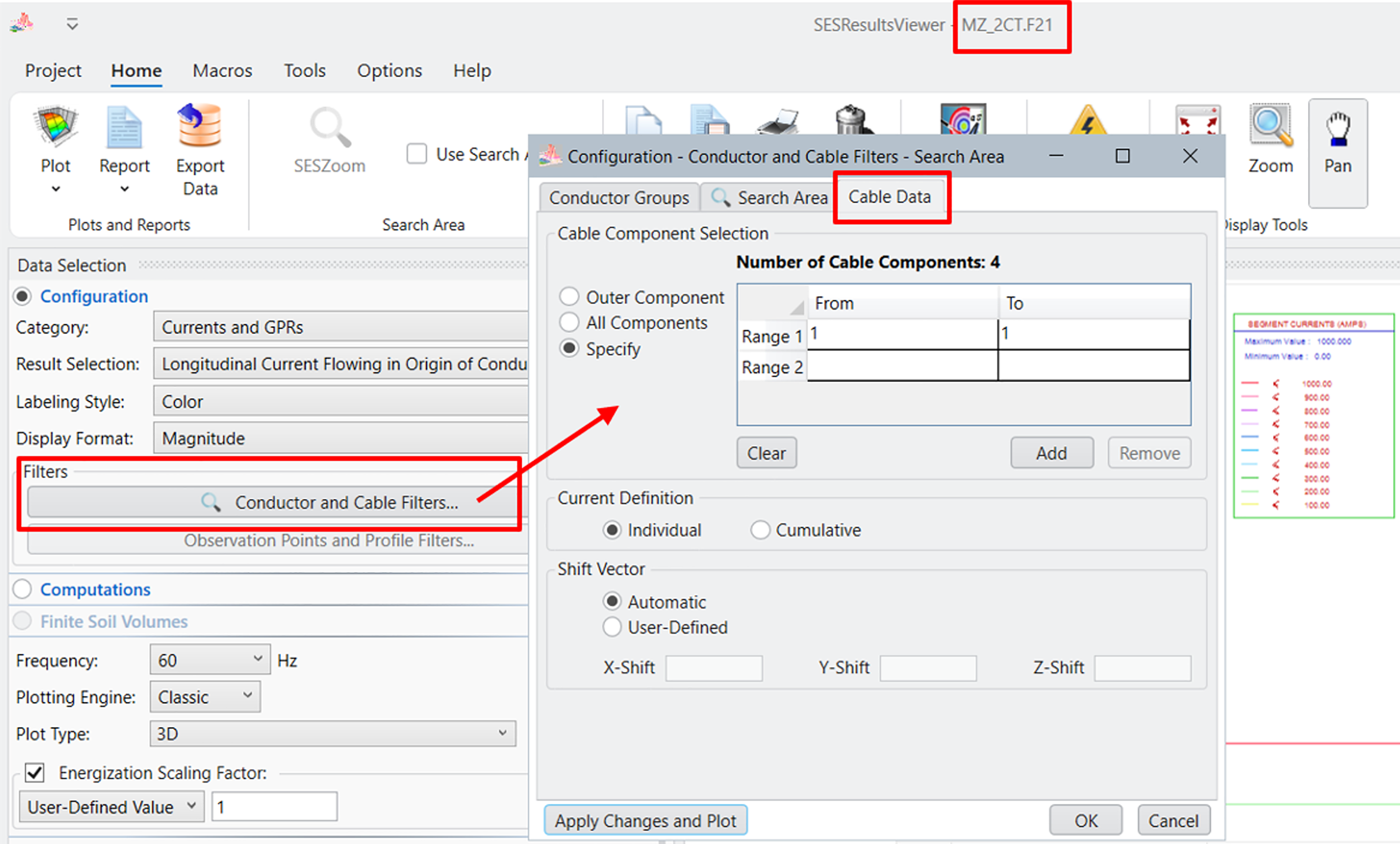

Since MALZ computation module now allows modeling of underground power cables, SESResultsViewer offers the same cable plotting capabilities for MALZ as those available in HIFREQ. Therefore, when cables are present in the computation database, one can specify desired cable components to be plotted or filter conductors by cable type for both Computation and Configuration plots. The image below shows the cable data specification screen for the Configuration plots.
