SESLibrary: New Tools and Enhancements

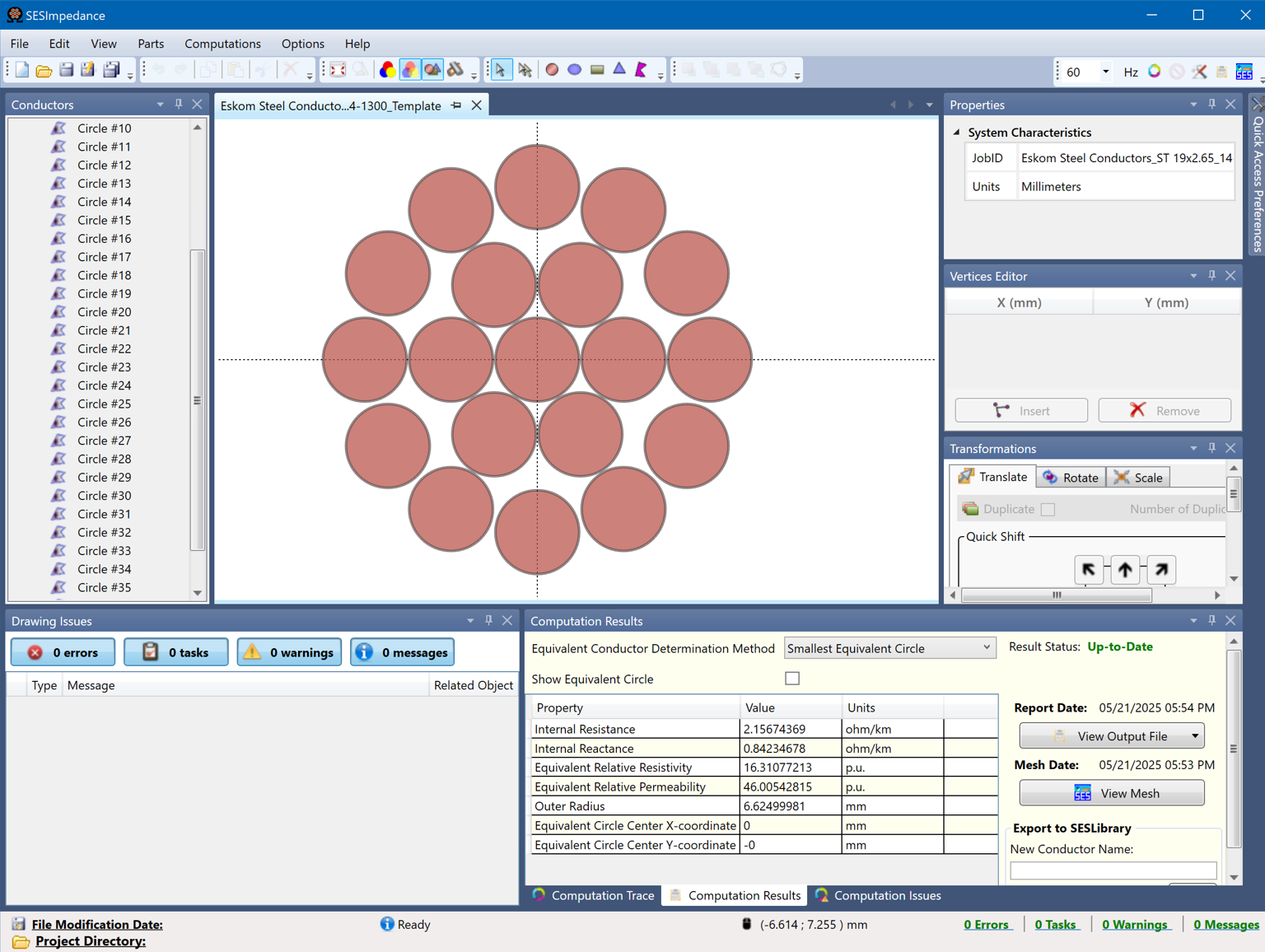

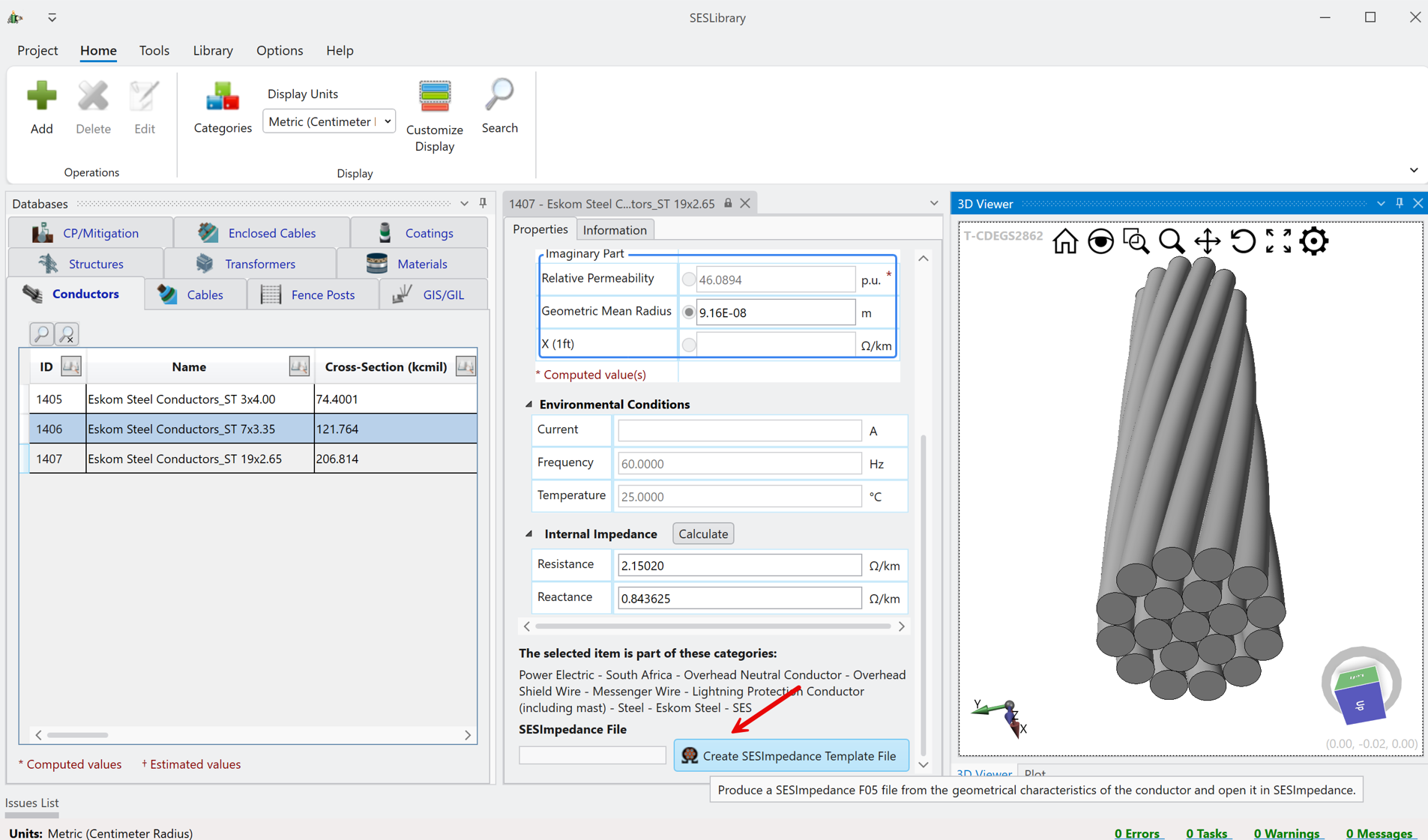

A new tool automates the creation of SESImpedance models using conductor data from SESLibrary for validation and calibration purposes. For ferromagnetic materials like steel, users can now adjust default permeability values to account for high variability.

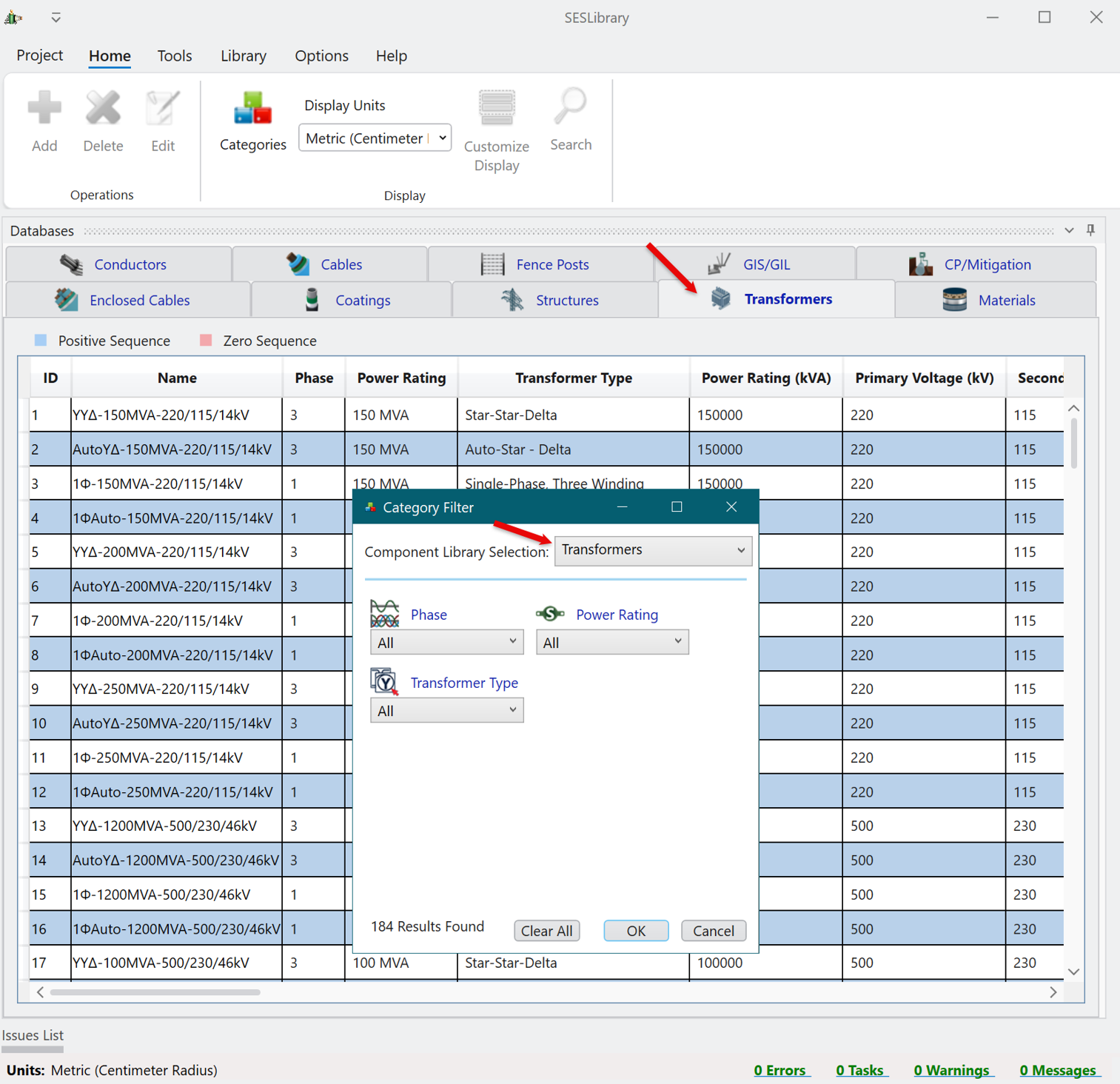

A new database provides electrical parameters for a wide range of transformers (10 kVA to 1200 MVA).

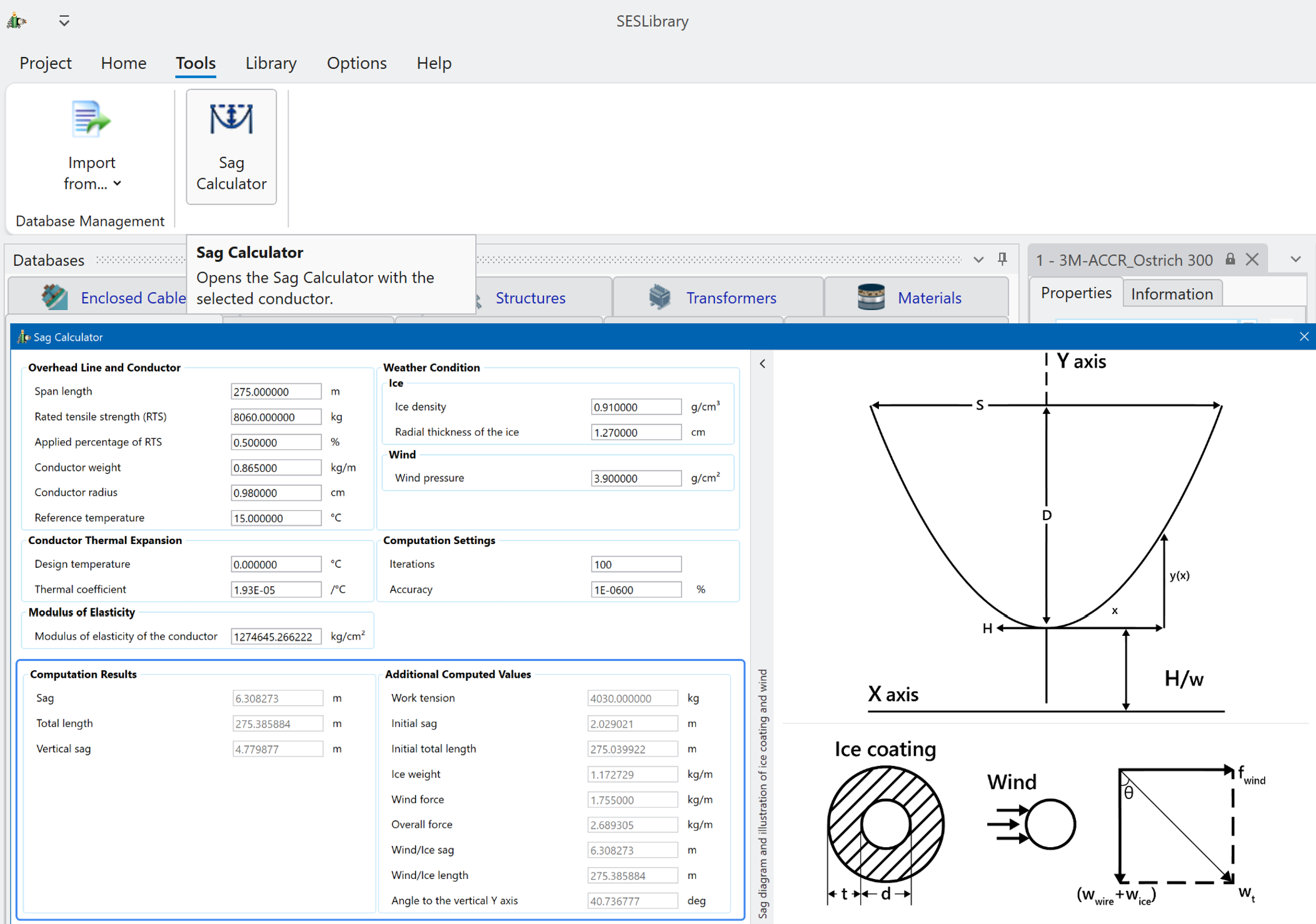

The sag calculator estimates vertical displacement of conductors under various loads, so that users can represent accurate overhead line sag configurations, if necessary.

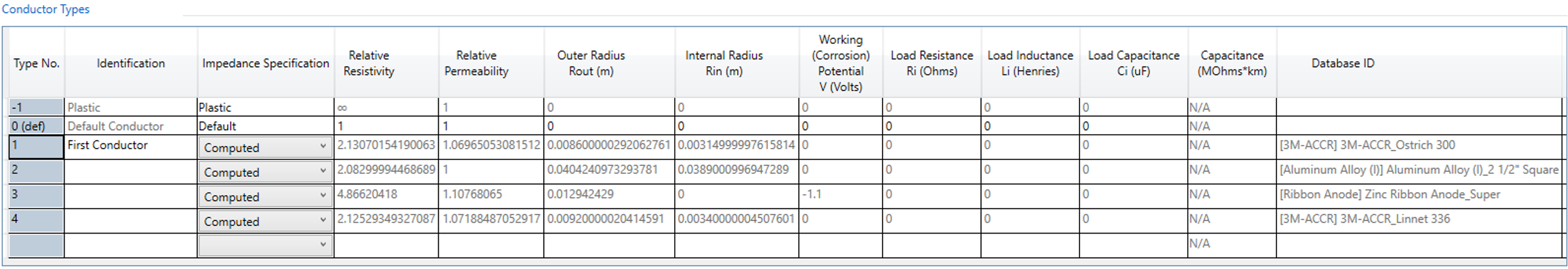

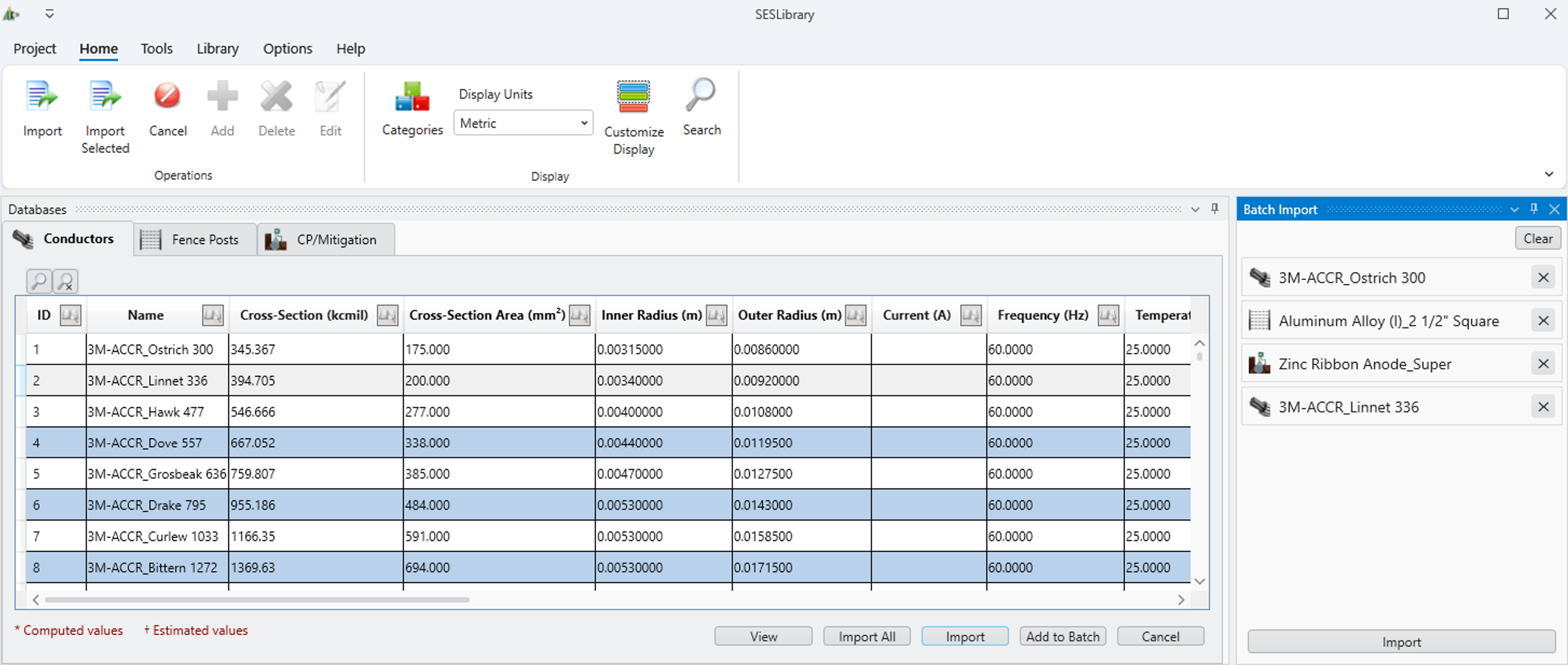

The latest enhancement to SESLibrary introduces a Batch Import feature, allowing users to select multiple items from different databases and group them into a temporary batch list for bulk import. This significantly improves the efficiency of importing items into CDEGS applications by reducing repetitive selection tasks. The Conductor Types screen in SESCAD is a straightforward example of a use case for this feature.
