The New SESConverter3D

Building upon the foundation of our earlier application, SESConverter, we introduce SESConverter3D. The new converter enables users to visualize and manipulate 3D models directly within the application and is made with particular attention to optimizing the software for lightweight performance and ease of use for faster conversions.

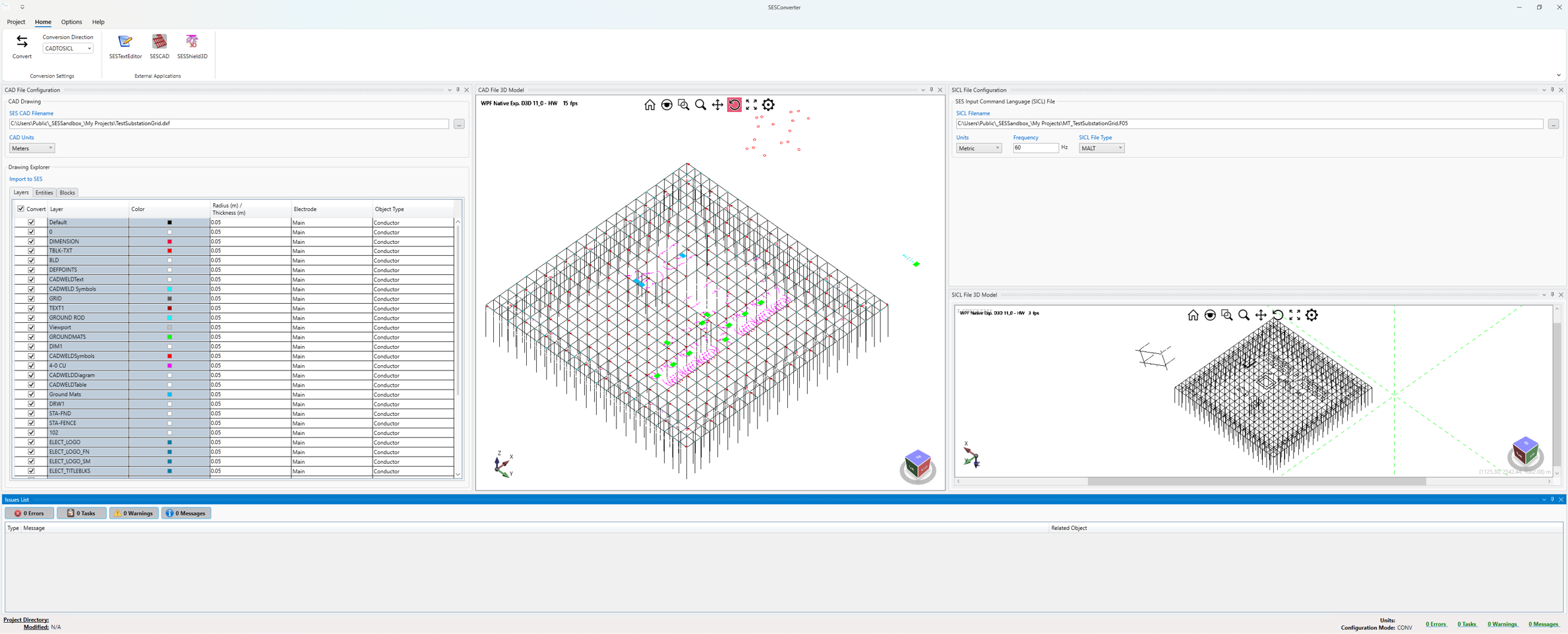

General overview of the application.

The application has the same features as the old one but also adds new features such as:

The conversion format has been expanded to include SESShield3D and PDF.
The conversion results are processed in real time in the resulting 3D view after each change in the parameters list.
Update the visibility of entities inside a layer.
Standalone CadEditorX.
New. STL & .PDF formats are now supported.
New F05 format specifically for converter.
Interactive context menu to select entities inside the 3D view.

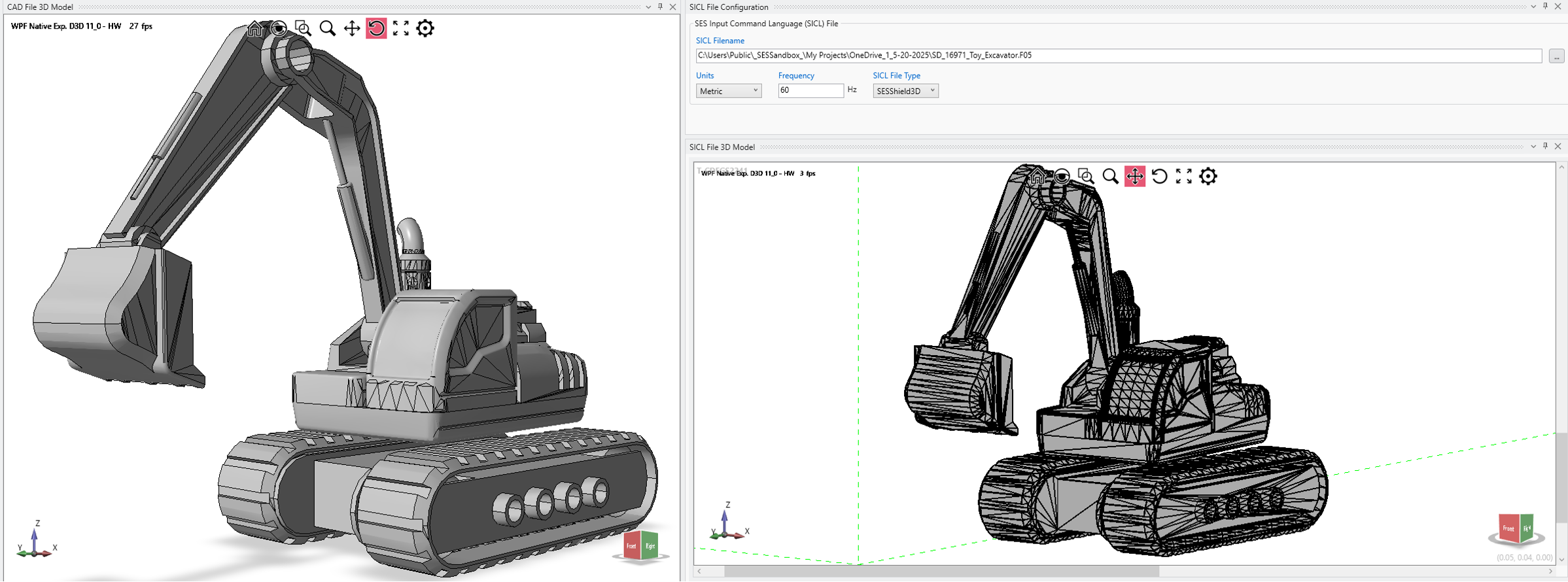

SESShield3D conversion from STL to plates example.

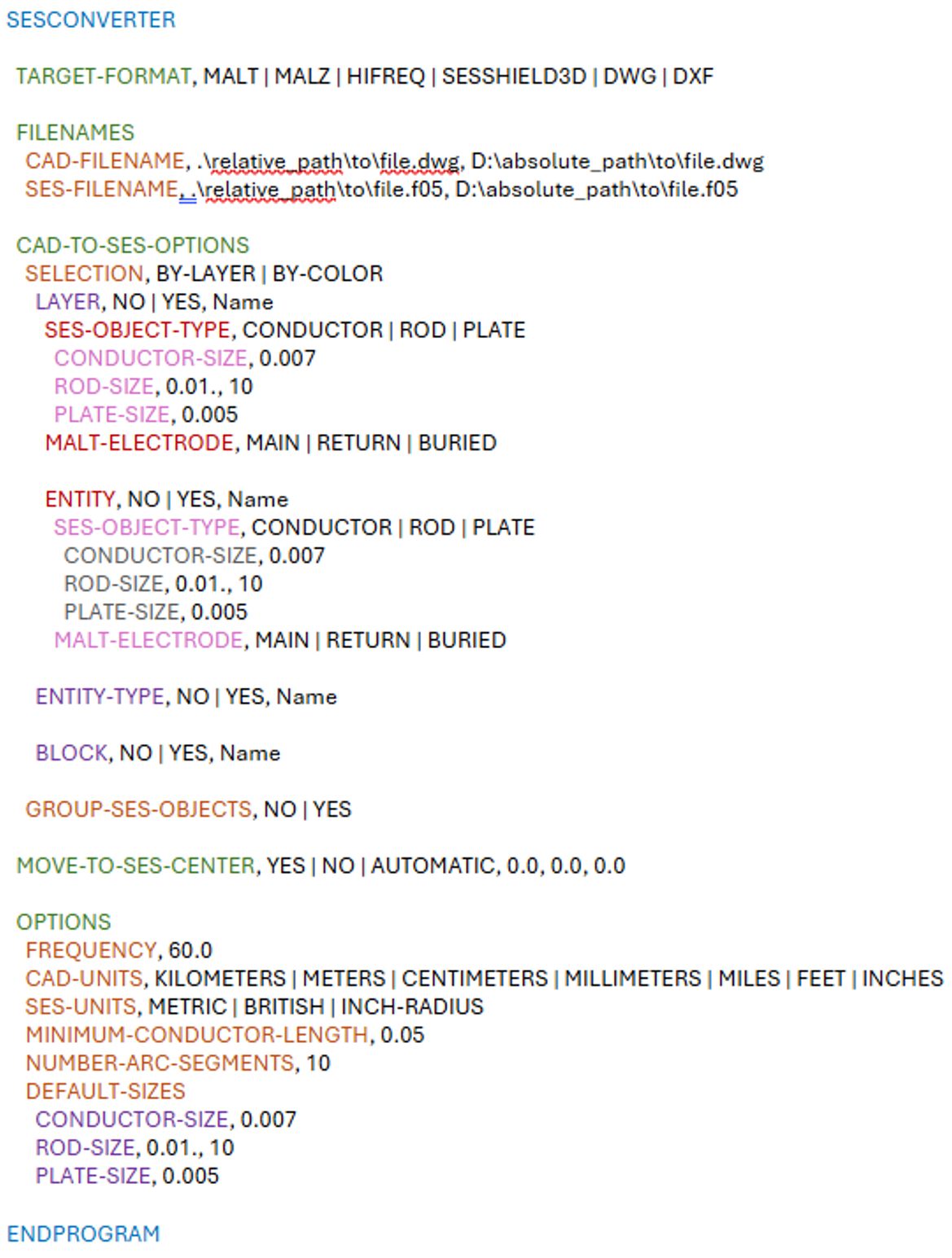

Command structure for SESConverter3D.

See the article titled “Introducing SESConverter3D – A File Converter with Interactive 3D” for further details.
