SESCircuitSimulator

SESFcdist is fully integrated in the new version of SESCircuitSimulator. This includes development of a new 3D Viewer that displays FCDIST models in SESCircuitSimulator. Compared to the legacy SESFcdist application, SESCircuitSimulator provides a more intuitive and user-friendly workflow for data presentation and specification.

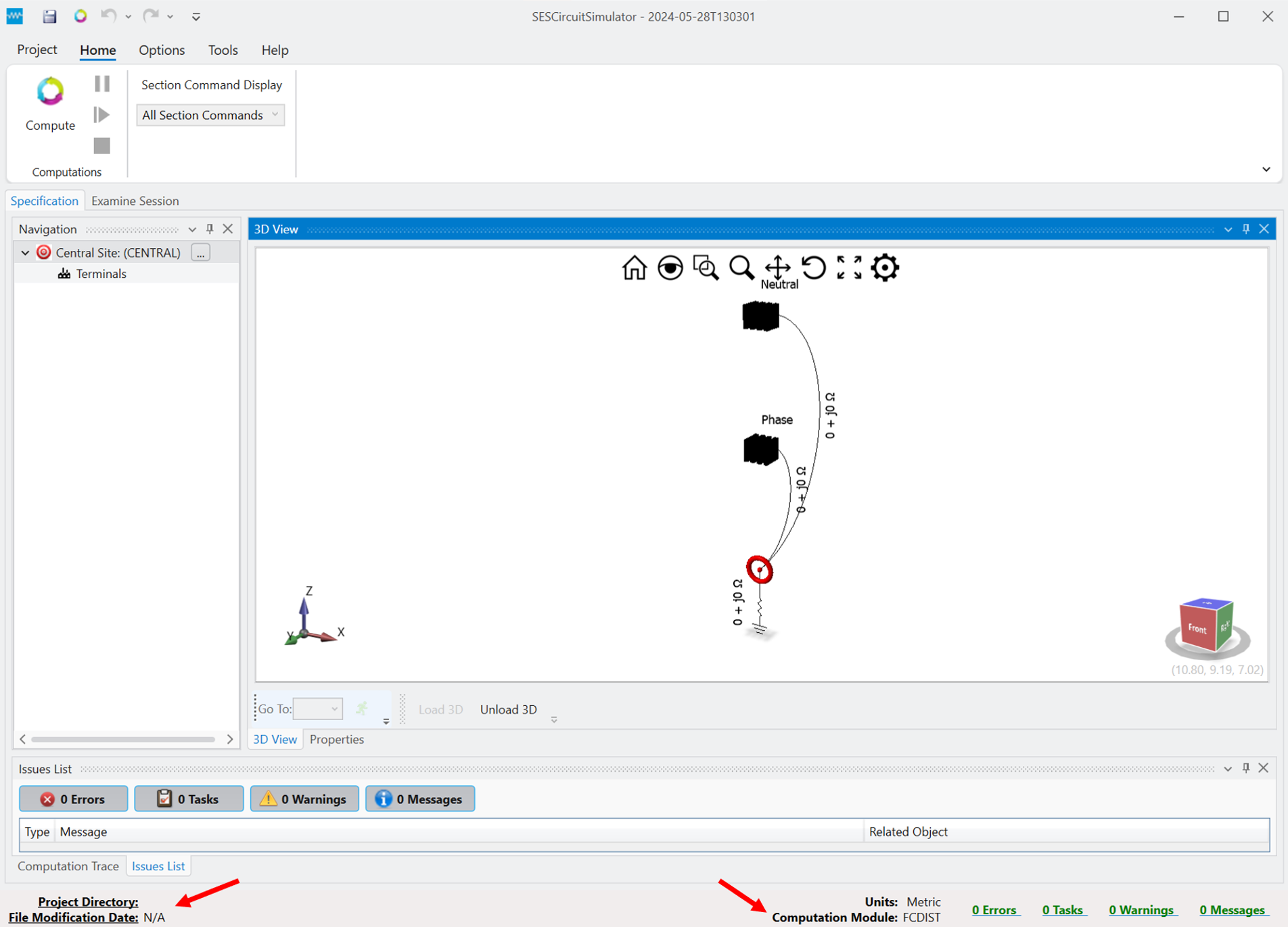

When starting a project in the new version of SESCircuitSimulator, the Project Type must be selected in the backstage as either SPLITS or FCDIST. The FCDIST type creates a project in the FCDIST environment, which is introduced in the new version of SESCircuitSimulator. It provides the same options as in the legacy SESFcdist. The image below shows the new FCDIST interface inside SESCircuitSimulator.

Besides integration of SESFcdist, SESCircuitSimulator's interface has been improved for better user-friendliness. A good portion of the new interface is dedicated to the 3D View to let the users examine the circuit more easily. Also, the Navigation Panel interacts with the Properties Panel and the 3D View through the added Go To and ellipsis buttons, respectively. Lastly, the computation results are displayed in 3D View, which means the users do not need to go to the Examine Session to see the 3D results once the circuit is computed.
