CorrCAD

Several significant enhancements have been introduced across various computation modes and result report modules. These updates improve corrosion modeling and computation, soil characterization, cable representation, and result visualization.

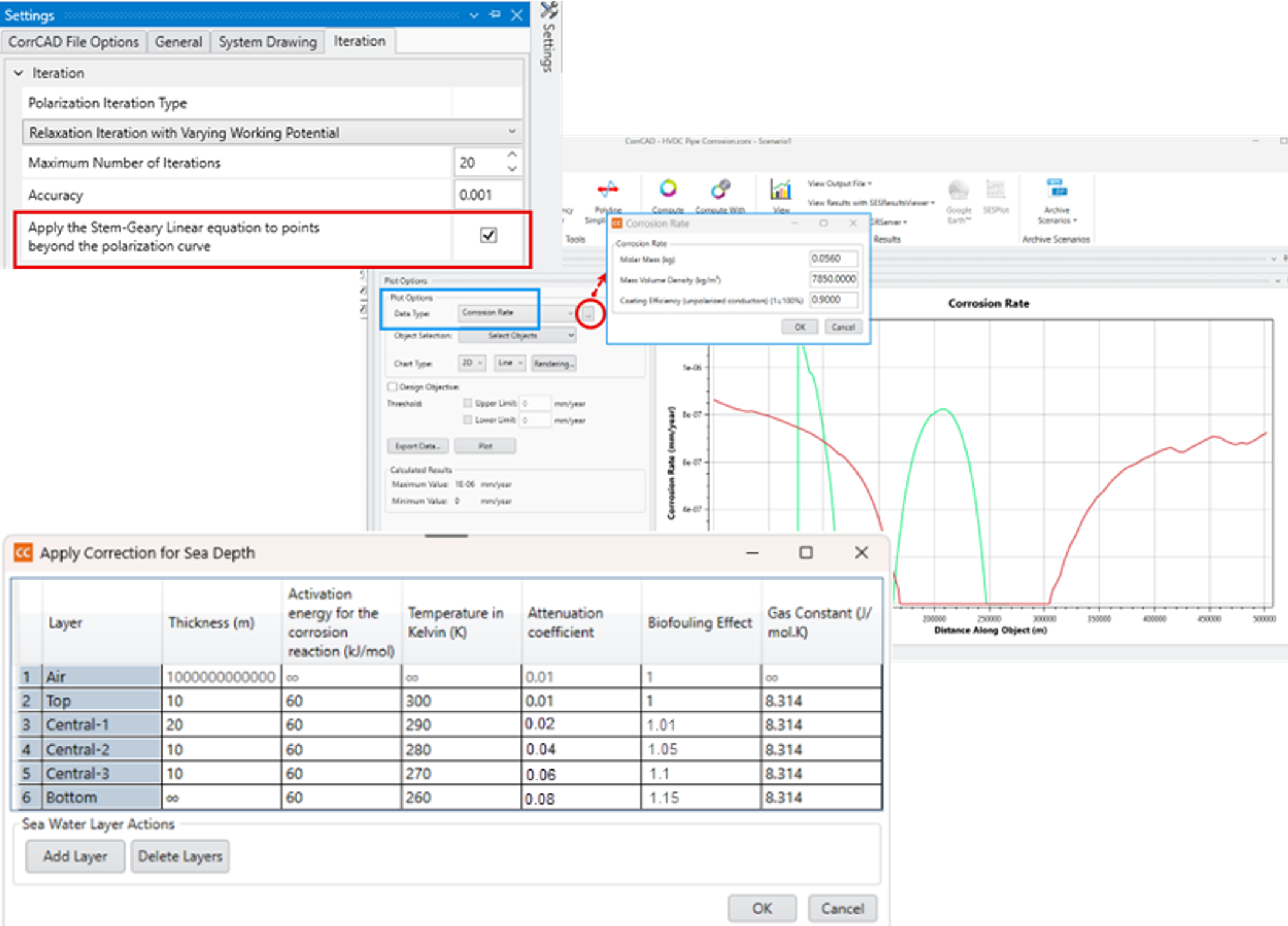

Corrosion Rate Calculation: Corrosion rate is a critical factor in corrosion assessment, as it determines the extent of material degradation over time and the lifespan of structures or components. Corrosion rates can now be computed and reported for both Compute with Polarization and Compute without Polarization modes, offering greater functionality in corrosion assessments.
The Stern-Geary Linear Equation: the widely recommended
Stern-Geary Linear Equation has been introduced to address cases where a data point falls outside the polarization curve, circumventing the computation interruption if this option is checked.
Seawater Depth-dependent adjustments: the latest version accounts for corrosion variation with seawater depth, improving the accuracy and realism of corrosion predictions in marine environments.

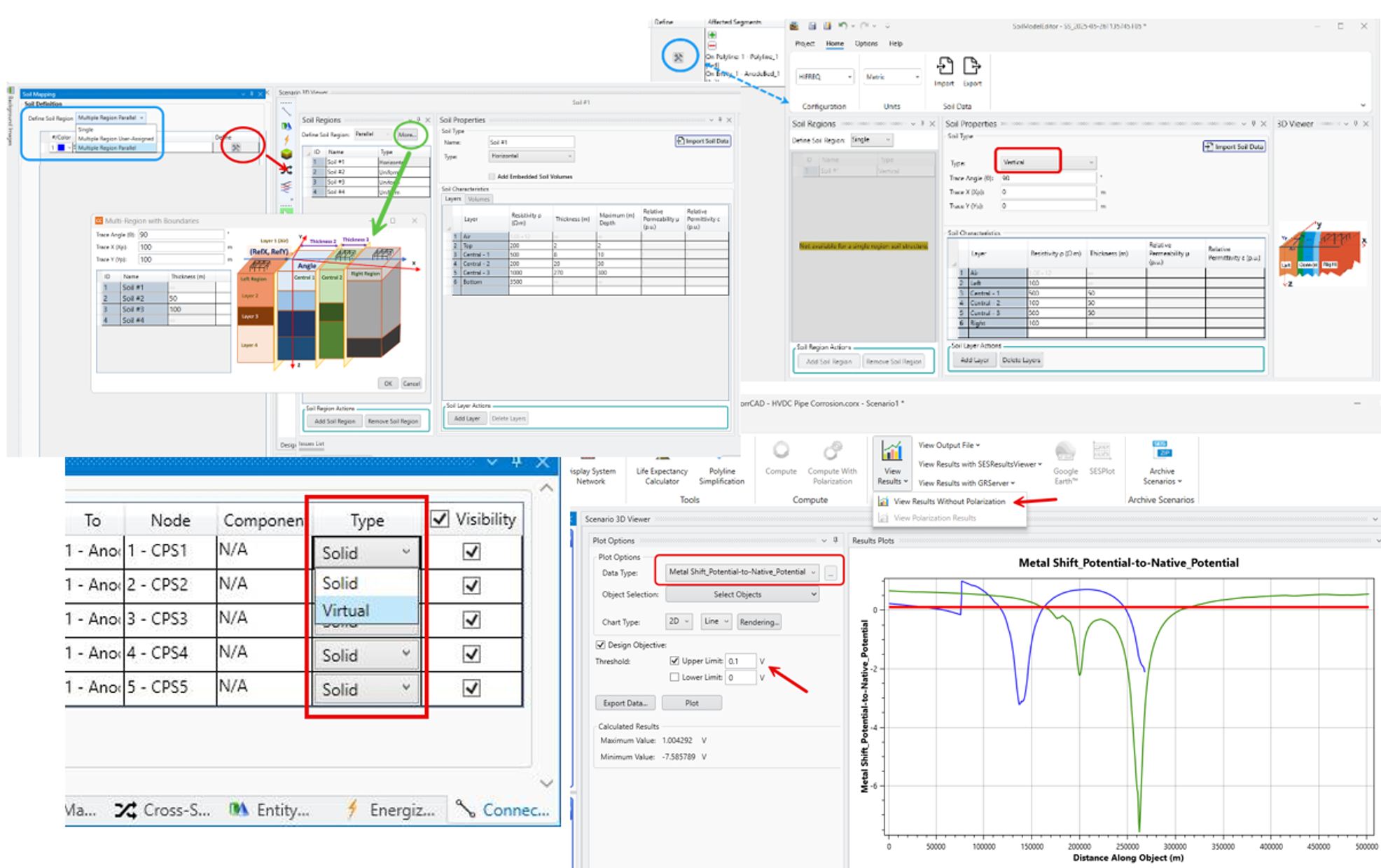

Furthermore, the Multi-Region Parallel Soil Model has been implemented in CorrCAD MALZ Mode, while the Vertical Soil Model is now available in CorrCAD HIFREQ Mode, expanding the range of supported soil conditions. Cable models are now available in MALZ. Both MALZ and HIFREQ modes now support connections that can be defined as either virtual or solid, offering users greater modeling flexibility. Finally, the CorrCAD integrated Report & Plot module is fully compatible with the capabilities that, previously, had only been available for Compute without Polarization, along with new customization options for data visualization.

See the article titled “Advances in DC Corrosion Analysis Using CorrCAD” for further details.
